Description

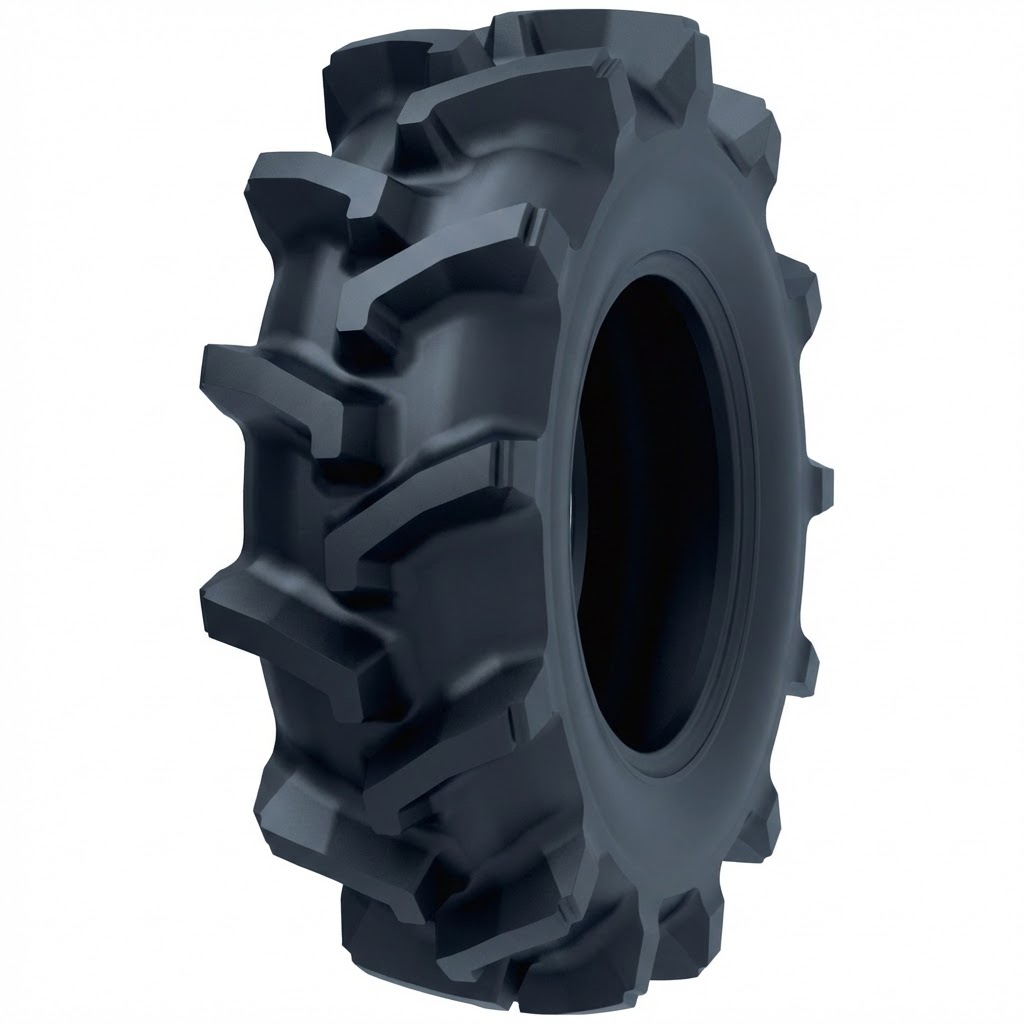

Model: P201
TRA Rating: PR-1
-
P201 adopts a traditional lug-type tread design. The shoulder lugs use a notched design to improve mud discharge and soil-cleaning performance.
-
P201 increases the lug running surface, deepens the tread pattern, and enlarges the lug support area, thereby improving tire durability.
-
P201 uses optimized tread-parameter values to improve traction and self-cleaning performance.
P201 Tire Parameters (English, 1:1 Correspondence)
Speed reference: 30 km/h
| Size | Ply Rating | TT/TL | Tread Depth (mm) | Rim | Overall Diameter (mm) | Section Width (mm) | Inflation Pressure (kPa) | Load (kg) @ 30 km/h |
|---|---|---|---|---|---|---|---|---|
| 6.50-16 | 6 | TT | 60.0 | 5.00F | 830 | 165 | 250 | 565 |
| 7.50-16 | 6 | TT | 63.0 | 5.50F | 890 | 195 | 300 | 750 |
