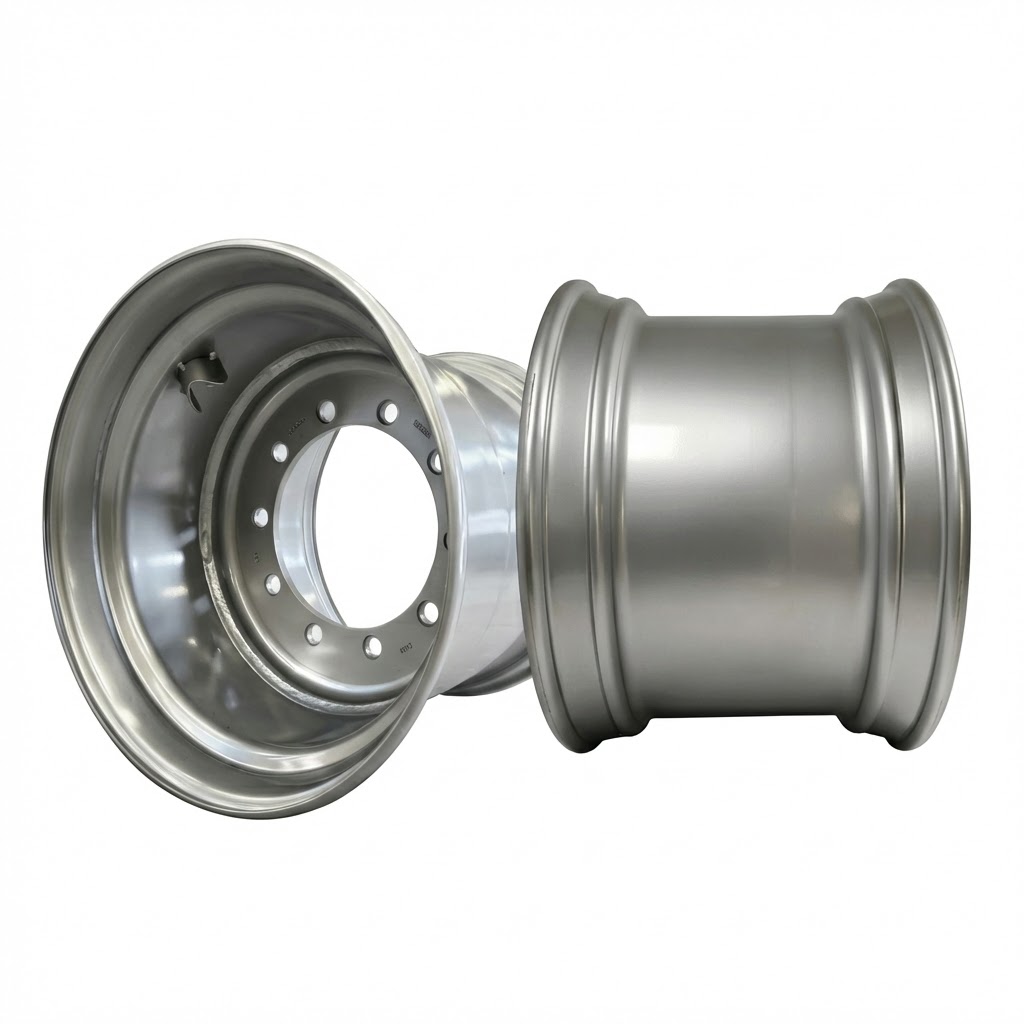

AGRICULTURAL TRAILER SPECIAL-PURPOSE VEHICLE SERIES 001

AGRICULTURAL TRAILER SPECIAL-PURPOSE VEHICLE SERIES 001

wws suky / Pre-sale Questions Need Help? Contact Us via WhatsApp
Categories: ,

Description

Wheel
Size		 Equipped
Tyre		 Center Hole
(mm)		 Bolt Hole
Count		 Bolt Hole
Diameter (mm)		 Distribution
Circle Diameter (mm)		 Setover (mm) Wheel Rim
Thickness (mm)		 Wheel Arm
Thickness (mm)
9.00X15.3 12.0/75-15.3 94 5 18.5 140 0 4 8
9.00X15.3 12.0/75-15.3 102 6 17 161 15 4 8
9.00X15.3 12.0/75-15.3 151 5 21.5 203.2 0 4 8
9.00X15.3 12.0/75-15.3 161 6 21.5 205 -38 4 8
9.00X15.3 12.0/75-15.3 152.4 8 17.5 203.2 0 4 8
13X15.5 400/60-15.5 136 6 18 170 0 4 8
13X15.5 400/60-15.5 140 6 21.5 190 0 4 8
13X15.5 400/60-15.5 150 5 27 208 30 4 8
13X15.5 400/60-15.5 152.4 8 16 203.3 -15 4 8
13X15.5 400/60-15.5 161 6 21.5 205 0 5 10
13X15.5 400/60-15.5 164 6 32.5 222.25 -15 5 10
8.25X16.5 11-16.5 161 6 21.5 205 0 4 8
8.25X16.5 11-16.5 152.4 8 16 203.2 0 4 8
9.75X16.5 12.5-16.5 161 6 21.5 205 -38 4 8
9.75X16.5 12.5-16.5 152.4 8 16 203.2 0 4 8
13X17 420/55-17 151 8 21.5 205 0 5 10
13X17 420/55-17 152.4 8 16.5 203.2 0 5 10
13X17 420/55-17 161 6 21.5 205 0-45 5 10
13X17 420/55-17 221 8 21.5 275 0 5 10
16X17 19.0/45-17 152.4 8 16.5 203.2 0 5 10
16X17 19.0/45-17 161 6 21.5 205 -35 5 10
16X17 19.0/45-17 164 6 32.5 222.25 -70 5 10
16X17 19.0/45-17 221 8 21.5 275 0 5 10
9.00X18 10.5/80-18 152.4 8 17 203.2 0 5 10
9.00X18 10.5/80-18 161 6 21.5 205 20 5 10
9.00X18 10.5/80-18 164 6 32.5 222.25 0 5 10
9.00X18 10.5/80-18 221 8 21.5 275 0 5 10
11X18 12.5/80-18 161 6 21.5 205 0 4 10
11X18 12.5/80-18 221 8 21.5 275 0 4 10
11X18 12.5/80-18 290 8 17 330 -83 5 10
13X18 15.0/70-18 161 6 21.5 205 0 5 10
13X18 15.0/70-18 221 8 21.5 275 0 5 10
13X18 15.0/70-18 290 8 17 330 0 5 10
W13X20 400/60-15.5 152.4 8 17.5 203.2 -42 4 10
W13X20 400/60-15.5 152.4 6 18.8 203.2 -20 5 12
W13X20 400/60-15.5 158 10 17.5 205 0 5 10
W13X20 400/60-15.5 290 8 17 330 0 5 10
W10X24 11.2-24 145 8 20 190 51 4 10
W10X24 11.2-24 152.4 8 19 203.2 48 4 10
W10X24 11.2-24 290 8 17 330 85 4 8
W11X24 12.4-24 102 6 17 161 0 5 10
W11X24 12.4-24 141 6 17 180 34 5 10
W11X24 12.4-24 221 8 21 275 70 5 10
W12X24 13.6-24 140 8 21 210 91.5 5 12
W12X24 13.6-24 141 6 17.5 180 0 4 8
W12X24 13.6-24 152.4 8 18 203.2 -40 4 8
W12X24 13.6-24 163 8 18 203.2 50 4 8
W12X24 13.6-24 221 8 21 275 0 4 8
W12X24 13.6-24 290.5 8 17 330 10 4 10
W13X24 14.9-24 221 8 21 275 54 5 10
W13X24 14.9-24 250 6 17 285 4.5 5 10
W14X24 440/65R24 140 8 21 210 34 5 14
W14X24 440/65R24 140 8 23 210 104.5 5 12
W14X24 440/65R24 145 8 20 210 -79 5 14
W14X24 440/65R24 152.4 8 17 203.2 17 5 14
W14X24 440/65R24 221 10 21 275 40 5 14
W14X24 440/65R24 221 8 23 275 37.5 5 14
W14X24 440/65R24 246 6 23 295 25 5 12
W14X24 440/65R24 281 10 24 335 10 5 14
W14X24 440/65R24 281 14 22 335 0 5 14
W14X24 440/65R24 290.5 8 17 335 -50 6 14
W15X24 16.9-24 221 8 21 275 74 5 10
W15X24 16.9-24 290.5 8 17 330 132 5 10
DW16X24 500/70R24 140 8 21 210 70 6 14
DW16X24 500/70R24 220 8 22 280 20 5 12
DW16X24 500/70R24 221 8 21 275 70 6 14
DW16X24 500/70R24 221 10 21 275 30 6 14
DW18X24 540/65R24 281.5 10 23 335 -50 5 12
DW18X24 540/65R24 281.5 10 24 335 -231.2 6 12
DW18X24 540/65R24 140 8 21 210 -15 6 16
DW18X24 540/65R24 140 8 21 210 0 6 14
DW18X24 540/65R24 221 8 22 275 45 6 16
DW20AX26 23.1-26 221 10 21 275 30 6 16
DW20AX26 23.1-26 221 8 21.5 275 -50 6 16
DW20AX26 23.1-26 221 8 24 275 62 6 14
DW20AX26 23.1-26 281.5 10 23 335 -50 6 14
DW25X26 28L-26 221 8 21.5 275 69 6 16
DW25X26 28L-26 221 8 24 275 50 6 16
DW25X26 28L-26 281 10 27 335 0 6 14
DW25X26 28L-26 281.5 10 23 335 -50 6 14
DW16X30 16.9-30 375 8 21 414 -59 5 12
DW16X30 16.9-30 199 8 24 250 125 5 14
DW21BX32 325/30R-21 281.5 10 24 335 35 6 12
DW27X32 900/70R32 221 8 21.5 275 80 6 16
DW27X32 900/70R32 281 10 27 335 0 6 16
DW27X32 900/70R32 446 12 23 510 0 6 16
W15LX34 16.9-34 152.4 8 19 203.2 0 5 10
DW15X34 16.9-34 199 8 24 250 125 4 14
W15LX34 16.9-34 220.5 8 21 280 8 5 12
DW14X38 15.5-38 281.5 10 24 335 35 6 14
W15LX38 16.9-38 220 8 23 280 75 5 12
W15LX38 16.9-38 281.5 10 24 335 0 5 12
DW16LX38 18.4-38 281.5 10 24 335 35 6 12
DW18X38 20.8-38 281 10 26 335 146 5 12
DW20X38 650/65R38 240 8 21 295 96 6 14
DW20X38 650/65R38 281 10 26 335 45 6 14
DW23X38 650/70R38 281 10 24 335 80 6 14
DW23X38 650/70R38 435 12 21 480 80 6 14
DW20AX42 650/65R42 221 8 21 275 0 6 14
DW20AX42 650/65R42 281 10 27 335 -50 6 16
DW23AX42 650/70R42 281.5 10 24 335 -53 6 14
DW23AX42 650/70R42 281 10 27 335 -50 7 16
DW27X42 850/55R42 281 10 23 335 0 7 16
DW27X42 850/55R42 281 10 27 335 -50 7 16
