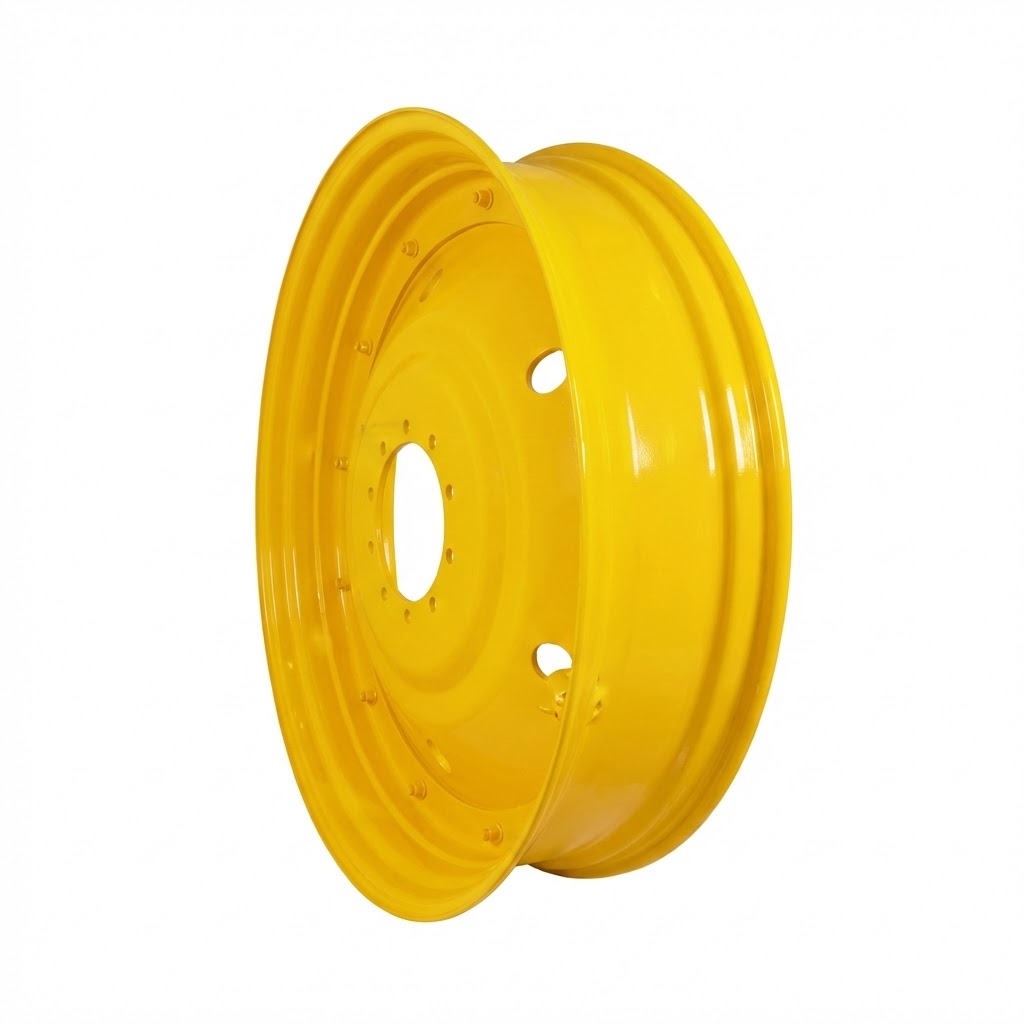

INTERTILLAGE AND IRRIGATION MACHINE SERIES 001

Description

Wheel Size	Equipped Tyre	Center Hole (mm)	Bolt Hole Count	Bolt Hole Diameter (mm)	Distribution Circle Diameter (mm)	Setover (mm)	Wheel Rim Thickness (mm)	Wheel Arm Thickness (mm)
W8X32	9.5-32	102	6	20	161	-20	4	10
W8X32	9.5-32	135	6	18	170	25	4	10
W8X32	9.5-32	152.4	8	18	203.2	25	4	10
W8X32	9.5-32	221	8	21.5	275	140	6	12
W8X32	9.5-32	290.5	8	17	330	-110.5	4	8
W8X38	9.5-38	152.4	8	20	203.2	50	4	10
W8X38	9.5-38	152.6	8	21	203.2	-62.5	4	10
W10X38	11.2-38	152.4	8	16.7	204.2	100	5	10
W10X38	11.2-38	390	12	17	430	0	5	10
W10X42	11.2-42	152.4	8	21	203.2	50	5	10
W10X42	11.2-42	390	12	17	430	0	5	10
W8X44	9.5-44	152.4	8	21	203.2	28	5	12
W8X44	9.5-44	199.5	8	24	250	125	5	12
W12X46	13.6-46	152.4	8	21	203.2	35	5	12
W12X46	13.6-46	390	12	17	430	0	5	12
W13X46	14.9-46	152.4	8	21	203.2	35	5	12
W13X46	14.9-46	390	12	17	430	0	5	12
W8X48	9.5-48	153	8	21.5	203.2	140	5	12
W8X48	9.5-48	220	8	21	280	50	5	12
W8X48	9.5-48	250	8	24	199.5	125	5	12
W10X48	11.2-48	152.4	8	21	203.2	120	5	12
W10X48	11.2-48	153	8	21	203.2	0	5	12
W10X48	11.2-48	221	8	21	275	-11	5	12
W10X48	11.2-48	221	8	21	275	120	5	12
W10X48	11.2-48	243	16	21	290/295	1	5	12
W10X48	11.2-48	281	10	24	335	-11	5	12
W10X48	11.2-48	281.5	10	24	335	-26	5	12
W12X48	13.6-48	221	8	21	275	-30	5	12
W12X48	13.6-48	281	10	24	335	0	5	12
W12X48	13.6-48	390	12	17	430	0	5	12
W10X50	11.2-50	281	10	24	335	0	5	12
W10X50	11.2-50	390	12	17	430	0	5	12
W12X50	13.6-50	281	10	24	335	0	5	12
W12X50	13.6-50	390	12	17	430	0	5	12
W10X52	11.2-52	281	10	24	335	0	5	12
W10X52	11.2-52	390	12	17	430	0	5	12
W12X52	13.6-52	281	10	24	335	0	5	12
W12X52	13.6-52	390	12	17	430	0	5	12
W10X54	11.2-54	281	10	24	335	0	5	12
W10X54	11.2-54	390	12	17	430	0	5	12
W12X54	13.6-54	281	10	24	335	0	5	12
W12X54	13.6-54	390	12	17	430	0	5	12
W11X24	12.4-24	221	8	21	275	70	5	10
W12X24	13.6-24	140	8	21	210	91.5	5	12
