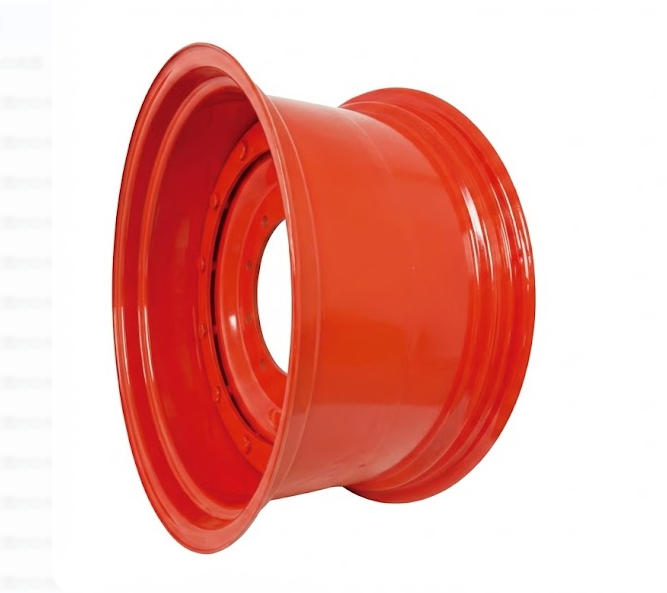

HARVESTER SERIES 001

HARVESTER SERIES 001





wws suky / Pre-sale Questions Need Help? Contact Us via WhatsApp
Categories: ,

Description

Wheel Size Equipped
Tyre		 Center Hole
(mm)		 Bolt Hole
Count		 Bolt Hole
Diameter (mm)		 Distribution
Circle Diameter (mm)		 Setover (mm) Wheel Rim
Thickness (mm)		 Wheel Arm
Thickness (mm)
19.5X7.5 265/70R-19.5 161 6 21.5 205 145 6 12
19.5X7.5 265/70R-19.5 176 10 26 225 152 6 12
19.5X7.5 265/70R-19.5 221 8 21.5 275 156 6 12
19.5X7.5 265/70R-19.5 220 8 32.5 285 156 6 12
19.5X8.25 295/80R-19.5 164 6 32.5 222.25 152 6 12
19.5X8.25 295/80R-19.5 176 10 26 225 160 6 12
19.5X8.25 295/80R-19.5 221 8 21.5 275 165 6 12
19.5X8.25 295/80R-19.5 220 8 32.5 285 165 6 12
19.5X11.75 385/65-19.5 161 6 21.5 205 0 6 12
19.5X11.75 385/65-19.5 152.4 8 21.5 203.2 50 6 12
19.5X11.75 385/65-19.5 221 8 21.5 275 0 6 12
19.5X11.75 385/65-19.5 281 10 27 335 0 6 12
19.5X11.75 385/65-19.5 281 10 27 335 120 6 12
19.5X14.00 455/65-19.5 161 6 21.5 205 0 6 12
19.5X14.00 455/65-19.5 164 6 32.5 222.25 0 6 12
19.5X14.00 455/65-19.5 176 10 26 225 0 6 12
19.5X14.00 455/65-19.5 221 8 21.5 275 0 6 12
19.5X14.00 455/65-19.5 220 10 20.6 285.75 0 6 12
19.5X14.00 455/65-19.5 281 10 27 335 0 6 12
19.5X14.00 455/65-19.5 281 10 27 335 0 6 12
22.5X11.75 360/60-22.5 152.4 8 17 203.2 0 6 14
22.5X11.75 360/60-22.5 161 6 21.5 205 0 6 14
22.5X11.75 360/60-22.5 164 6 32.5 222.25 0 6 14
22.5X11.75 360/60-22.5 176 10 26 225 0 6 14
22.5X11.75 360/60-22.5 220 10 26 285.75 120 6 14
22.5X11.75 385/60-22.5 221 8 32 285 0 6 14
22.5X11.75 385/60-22.5 281 10 27 335 135 6 14
22.5X13.00 400/60-22.5 161 6 21.5 205 0 6 14
22.5X13.00 400/60-22.5 152.4 8 16.5 203.2 0 6 14
22.5X13.00 400/60-22.5 221 10 20.6 285.75 -75 6 14
22.5X13.00 400/60-22.5 221 10 26 285.75 0 6 14
22.5X13.00 400/60R22.5 281 10 26 335 0 6 14
22.5X14.00 455/65-22.5 161 6 21.5 205 0 6 14
22.5X14.00 455/65-22.5 152.4 8 16.5 203.2 0 6 14
22.5X14.00 455/65-22.5 221 8 21.5 275 -50 6 14
22.5X14.00 455/65-22.5 221 10 26 285.75 0 6 14
22.5X14.00 455/65-22.5 281 10 27 335
22.5X16.00 500/60-22.5 221 10 26 285.75 0 6 14
22.5X16.00 500/60-22.5 281 10 27 335 0 7 14
22.5X18.00 550/45-22.5 221 8 21.5 275 -50 6 14
22.5X18.00 550/45-22.5 221 10 26 285.75 0 6 14
22.5X18.00 550/45-22.5 281 10 27 335 0 7 14
22.5X20.00 600/50-22.5 221 8 21.5 275 0 7 16
22.5X20.00 600/50-22.5 221 10 26 285.75 0 7 16
22.5X20.00 600/50-22.5 281 10 27 335 0 7 16
22.5X20.00 600/50-22.5 281 10 27 335 50 7 16
22.5X22.00 650/55-22.5 221 8 21.5 275 0 7 16
22.5X22.00 650/55-22.5 221 10 26 285.75 0 7 16
22.5X22.00 650/55-22.5 281 10 27 335 -50 7 16
22.5X22.00 650/55-22.5 281 10 27 335 0 7 16
22.5X24.00 710/40-22.5 221 8 21.5 275 0 7 16
22.5X24.00 710/40-22.5 221 10 26 285.75 0 7 16
22.5X24.00 710/40-22.5 281 10 27 335 0 7 16
22.5X24.00 710/40-22.5 281 10 27 335 168 7 16
24.5X8.25 295/80R-24.5 221 8 21.5 275 0 6 14
24.5X8.25 295/80R-24.5 281 10 26 335 168 6 14
24.5X11.75 385/60-24.5 221 8 32 285 0 6 14
24.5X11.75 385/60-24.5 281 10 27 335 0 6 14
26.5X20.00 600/55-22.5 221 8 21.5 275 0 7 16
26.5X20.00 600/55-22.5 281 10 27 335 0 7 16
26.5X22.00 650/55-26.5 221 8 21.5 275 0 7 16
26.5X22.00 650/55-26.5 281 10 27 335 0 7 16
26.5X24.00 710/40-26.5 221 8 21.5 275 0 7 16
26.5X24.00 710/40-26.5 281 10 27 335 0 7 16
26.5X26.00 750/50-26.5 221 8 21.5 275 0 7 16
26.5X26.00 750/50-26.5 281 10 27 335 0 7 16
26.5X28.00 800/40-26.5 221 8 21.5 275 0 7 16
26.5X28.00 800/40-26.5 281 10 27 335 0 7 16
30.5X20.00 650/50-30.5 221 8 21.5 275 0 7 16
30.5X20.00 650/50-30.5 281 10 27 335 0 7 16
30.5X24.00 750/60-30.5 221 8 21.5 275 0 7 16
30.5X24.00 750/60-30.5 281 10 27 335 0 7 16
30.5X28.00 850/50-30.5 221 8 21.5 275 0 7 16
30.5X28.00 850/50-30.5 281 10 27 335 0 7 16
