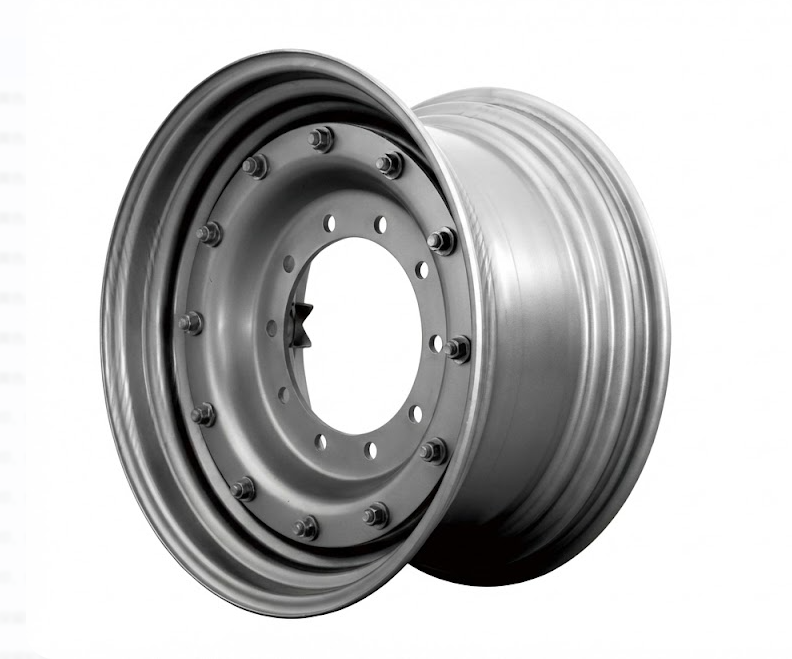

TRACTOR SERIES 003

TRACTOR SERIES 003

wws suky / Pre-sale Questions Need Help? Contact Us via WhatsApp
Categories: ,

Description

Wheel
Size		 Equipped Tyre Center Hole
(mm)		 Bolt Hole
Count		 Bolt Hole
Diameter (mm)		 Distribution
Circle Diameter (mm)		 Setover (mm) Wheel Rim
Thickness (mm)		 Wheel Arm
Thickness (mm)
W10X26 11.2-26 130 6 17 165 32.5 5 10
W10X26 11.2-26 221 8 21.5 275 75 5 10
W10X36 11.2-26 221 8 24 275 163 5 12
W10X36 11.2-26 281 10 21 335 175 5 12
W11X26 12.4-26 130 6 17 165 32.5 5 10
W11X26 12.4-26 221 8 21.5 275 75 5 10
W13X26 14.9-26 281.5 10 23 335 45 5 10
W13X26 14.9-26 290.5 8 16.5 330 -17.5 5 10
W15X26 16.9-26 281 10 21 335 15 5 12
W15X26 16.9-26 290 8 17 330 50 5 12
W10X28 11.2-28 141 6 17 180 35 4 8
W10X28 11.2-28 152.6 8 18.8 203.2 0 4 8
W10X28 11.2-28 153 8 21.5 203.2 48 4 10
W10X28 11.2-28 190 8 20 145 -95 4 10
W10X28 11.2-28 220 8 20 275 35 4 8
W10X28 11.2-28 290.5 8 17 330 26 4 8
W11X28 12.4-28 141 6 17 190 54 4 8
W11X28 12.4-28 152.6 8 18.8 203.2 0 4 8
W12X28 13.6-28 141 6 17 180 50 4 8
W12X28 13.6-28 190 8 20 145 45 4 8
W12X28 13.6-28 152.4 6 18 203.2 70 4 8
W12X28 13.6-28 290 8 17 330 125 4 8
W13X28 14.9-28 160 8 24 240 80 5 10
DW13X28 14.9-28 221 8 21.5 275 45 5 10
W15LX28 16.9-28 281 10 21 335 40 5 10
DW15LX28 16.9-28 290 8 17 330 0 5 10
W12X30 13.6-30 152.4 8 20.5 203.2 0 4 10
W12X30 13.6-30 152.4 8 20 203.2 20 4 10
W12X30 13.6-30 163 8 20.5 203.2 0 4 10
W14X30 440/65R30 152.4 8 20.5 203.2 0 5 10
W14X30 440/65R30 281 10 21 335 45 5 10
W15LX30 16.9-30 220 8 23 280 35 5 12
DW15X30 16.9-30 281 10 21 335 45 5 12
W16X30 18.4-30 281 10 21 335 70 5 12
DW16X30 18.4-30 199 8 24 250 125 5 12
DW16X30 18.4-30 375 8 21 414 -59 5 12
W8X32 9.5-32 152.4 8 18.8 203.2 0 4 10
W8X32 9.5-32 221 8 21 275 50 4 10
W8X32 9.5-32 290.5 8 17 330 -50 4 10
W10X32 11.2-32 152.4 8 21 203.2 50 4 8
W10X32 11.2-32 152.4 8 21 203.2 50 4 8
W10X32 11.2-32 221 8 21 275 -28 4 10
W10X32 11.2-32 281 10 24 335 -28 4 10
W10X32 11.2-32 290.5 8 17 330 50 4 10
W15LX34 16.9-34 152.4 8 21 203.2 -40 5 12
W15LX34 16.9-34 152.4 8 19 203.2 0 5 10
W15LX34 16.9-34 220.5 8 21 280 8 5 12
W15LX34 16.9-34 220.5 8 23 280 45 5 12
W16X34 18.9-34 240 8 21 295 45 5 12
DW16X34 18.9-34 281 10 26 335 96 5 12
DW18X34 600/7R340 240 8 21 295 -26.5 5 12
DW18X34 600/7R340 281 10 26 335 54 5 12
W11X36 12.4-36 152.4 8 19 203.2 79 5 12
W11X36 12.4-36 281 10 26 335 152 5 12
W13X26 14.9-36 281.5 10 23 335 45 4 10
W13X26 14.9-36 290.5 8 16.5 330 -17.5 4 10
W10X38 11.2-38 151 8 18.8 203.2 -22 4 10
W10X38 11.2-38 152.4 8 21 203.2 90 4 10
W10X38 11.2-38 152.6 8 18 203.2 0 4 10
W10X38 11.2-38 153 8 20 203.2 -22 4 12
W10X38 11.2-38 170 8 22 220 0 4 12
W10X38 11.2-38 220 8 22 280 0 4 12
W11X38 12.4-38 152.4 8 21 203.2 -14.5 4 10
W11X38 12.4-38 221 8 23 275 70 4 10
W12X38 13.6-38 152.4 8 21 203.2 22.6 4 10
W12X38 13.6-38 152.4 8 17 203.2 50 4 10
W12X38 13.6-38 221 8 23 275 96 4 10
DW14X38 15.5-38 281.5 10 24 335 35 5 12
W15LX38 16.9-38 220 8 23 280 75 5 12
W15LX38 16.9-38 281.5 10 24 335 0 5 12
W15LX38 16.9-38 281.5 10 26 335 0 5 12
W16X38 18.4-38 220 8 23 280 80 5 12
DW16X38 18.4-38 281.5 10 24 335 34 6 12
W18X38 20.8-38 220 8 23 280 45 5 12
DW18X38 20.8-38 281 10 26 335 146 5 12
DW20X38 650/65R38 240 8 21 295 96 6 14
DW20X38 650/65R38 281 10 26 335 45 6 14
