Description
Model: R103
TRA Rating: R-1
-

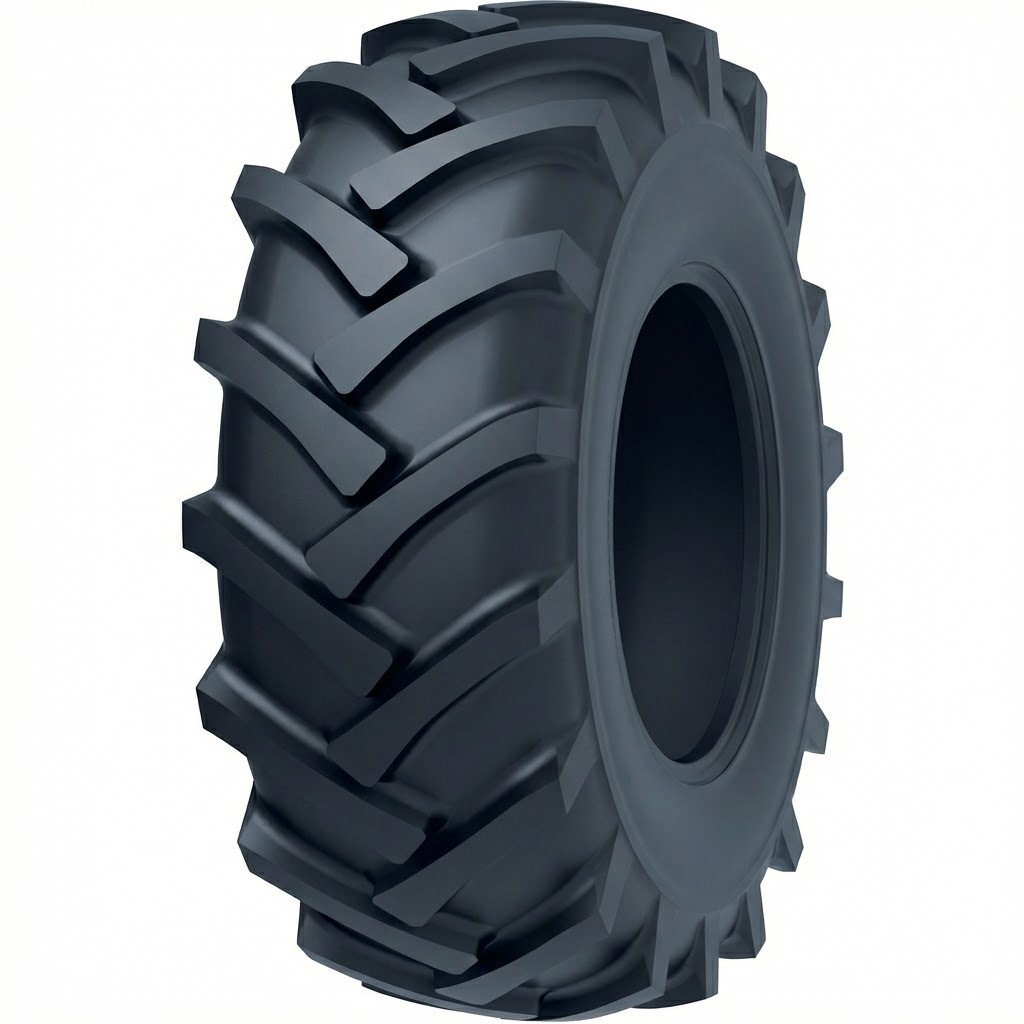

R103 features an attractive tread design and a wide running surface, and is designed for tractor drive wheels.
-
R103 provides good traction and self-cleaning performance.
-
R103 is suitable for dry-field operations and can also be used for short-distance road transport.
R103 Tire Parameters (English, 1:1 Correspondence)
Speed reference: 40 km/h
| Size | Ply Rating | TT/TL | Tread Depth (mm) | Rim | Overall Diameter (mm) | Section Width (mm) | Inflation Pressure (kPa) | Load (kg) @ 40 km/h |
|---|---|---|---|---|---|---|---|---|
| 15-24 | 10 | TT/TL | 33 | DW14 | 1330 | 410 | 280 | 2520 |
| 15-24 | 12 | TL | 33 | DW14 | 1330 | 410 | 330 | 2790 |
