Description

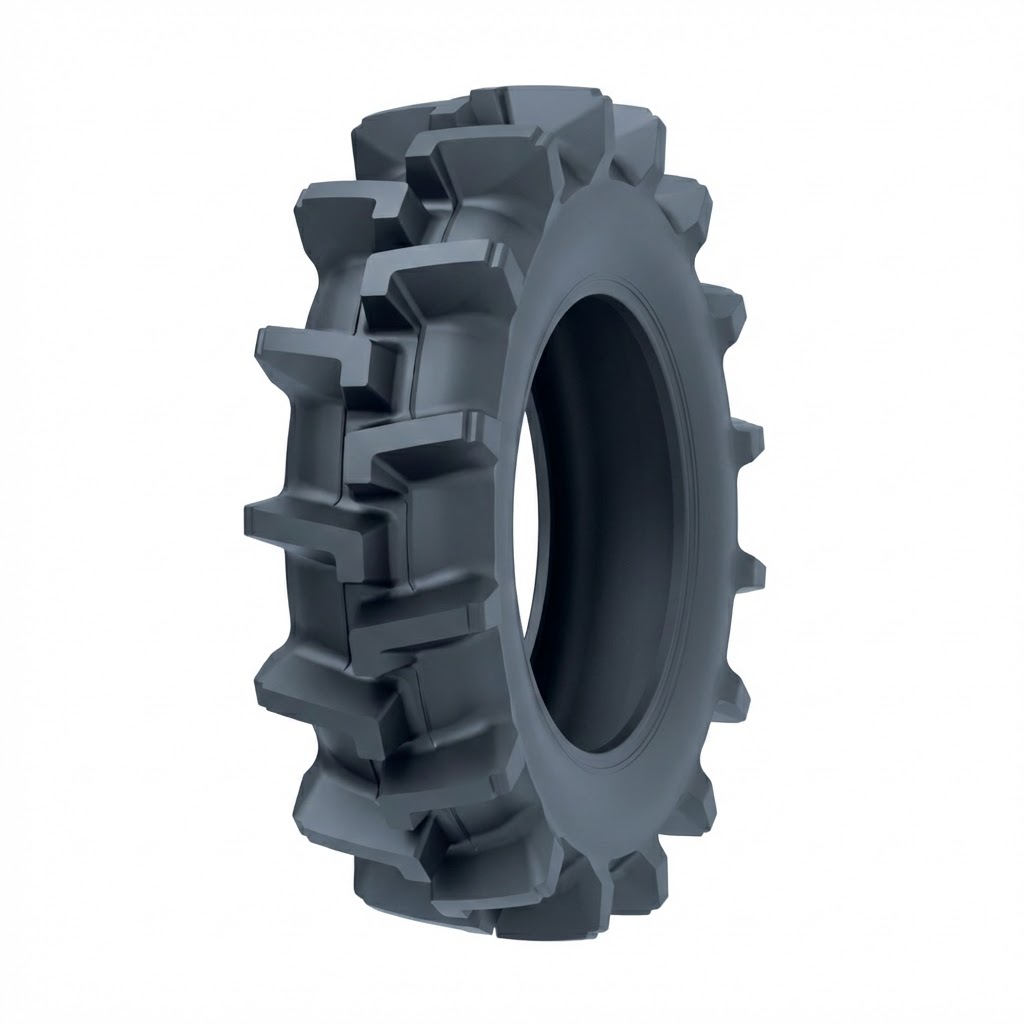

Model: P202
TRA Rating: PR-1
-
P202 adopts a traditional lug-type tread design. The shoulder lugs use a notched design to improve mud discharge and self-cleaning performance.
-
P202 increases the lug running surface, deepens the tread pattern, and enlarges the lug support area, thereby improving tire durability.
-
P202 uses optimized tread-parameter values to improve traction and self-cleaning performance.
P202 Tire Parameters (English, 1:1 Correspondence)
Speed reference: 30 km/h
| Size | Ply Rating | TT/TL | Tread Depth (mm) | Rim | Overall Diameter (mm) | Section Width (mm) | Inflation Pressure (kPa) | Load (kg) @ 30 km/h |
|---|---|---|---|---|---|---|---|---|
| 8.3-20 | 6 | TT | 65.0 | W7 | 950 | 210 | 270 | 970 |
| 8.3-24 | 6 | TT | 65.0 | W7 | 1050 | 210 | 270 | 1135 |
| 8.3-24 | 8 | TT | 65.0 | W7 | 1050 | 210 | 330 | 1275 |
| 9.5-24 | 6 | TT | 74.0 | W8 | 1150 | 240 | 240 | 1315 |
| 9.5-24 | 8 | TT | 74.0 | W8 | 1150 | 240 | 290 | 1475 |
| 11-32 | 6 | TT | 85.0 | W10 | 1460 | 305 | 160 | 1080 |
| 11.2-24 | 6 | TT | 76.0 | W10 | 1205 | 285 | 210 | 1465 |
| 12.4-28 | 6 | TT | 78.0 | W11 | 1245 | 315 | 230 | 1980 |
| 13.6-24 | 10 | TT | 80.0 | W12 | 1265 | 345 | 250 | 2350 |
| 13.6-38 | 8 | TT | 95.0 | W12 | 1710 | 345 | 250 | 2780 |
| 14.9-24 | 10 | TT | 90.0 | W13 | 1410 | 378 | 230 | 1990 |
| 14.9-26 | 8 | TT | 90.0 | W13 | 1460 | 378 | 180 | 1760 |
| 14.9-28 | 8 | TT | 90.0 | W13 | 1510 | 378 | 180 | 1880 |
| 16.9-28 | 10 | TT | 90.0 | W15L | 1535 | 430 | 200 | 2380 |
| 16.9-30 | 10 | TT | 95.0 | W15L | 1585 | 430 | 200 | 2455 |
| 16.9-34 | 10 | TT | 95.0 | W15L | 1685 | 430 | 220 | 3385 |
| 18.4-30 | 12 | TT | 90.0 | W16L | 1655 | 467 | 230 | 3180 |
| 18.4-34 | 10 | TT | 90.0 | W16L | 1755 | 467 | 180 | 2990 |
| 18.4-38 | 12 | TT | 90.0 | W16L | 1855 | 467 | 230 | 3575 |
| 20.8-38 | 12 | TT | 90.0 | W18L | 1935 | 528 | 200 | 4000 |
