Description

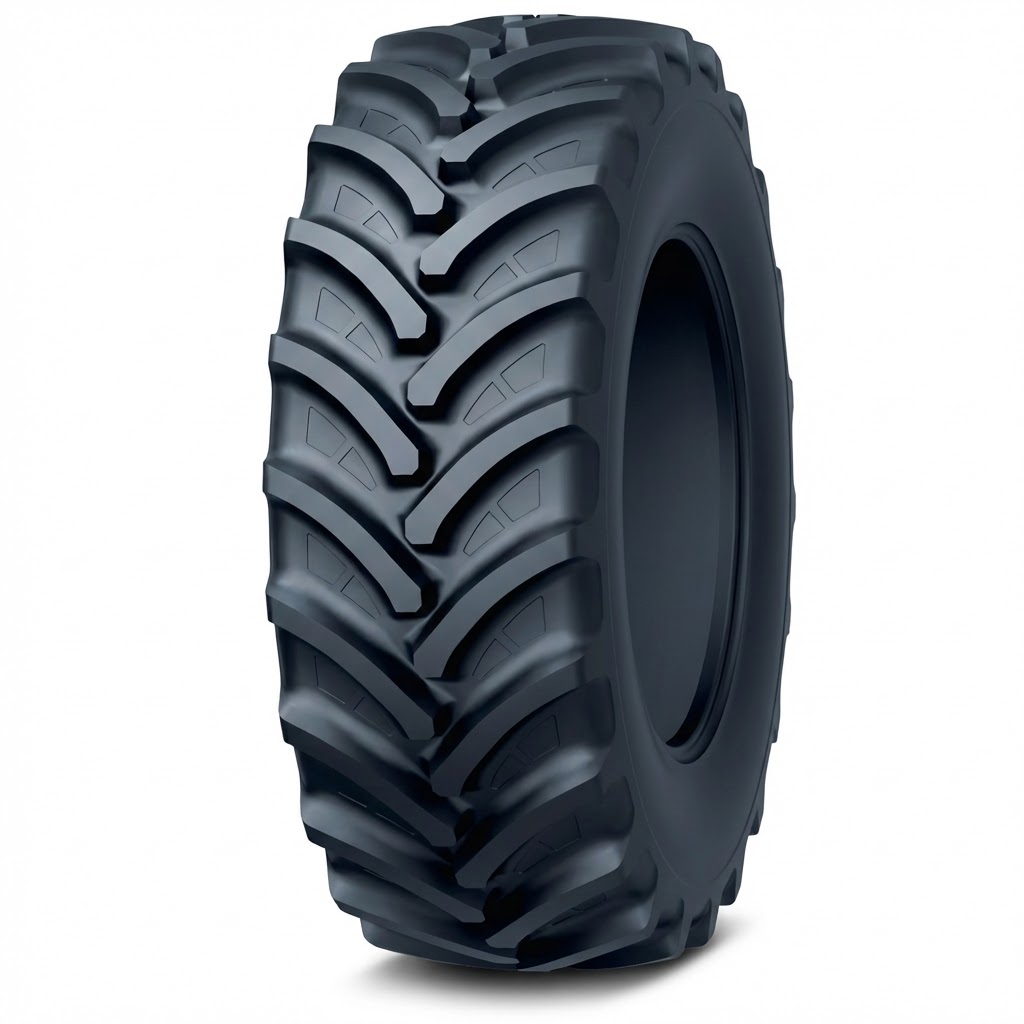

AG-R X1 is a radial agricultural tire designed for high-traction performance and stable handling on challenging surfaces. Its tread and casing structure are optimized for heavy-duty tractor applications, improving efficiency while protecting soil and crops.
Key Features
-
Parallel arc-shaped tread improves self-cleaning on muddy roads
-
Curved trapezoid lug design delivers strong traction, stability, and high ride comfort
-
Reinforced carcass supports low pressure & high load, reducing damage to soil and crops
-
Larger footprint helps reduce fuel consumption and operating cost for high-horsepower tractors
-
Higher tire strength improves stability on harsh and uneven road conditions
| Series | TRA | Size | Load Index | TT/TL | Tread Depth (mm) | Rim | Overall Dia (mm) | Section Width (mm) | Pressure (kPa) | Static Load (kg) | Load @ 65 km/h (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AG-R X1 | R-1W | IF520/85R42 | 169D | TL | 51 | 18 | 1942 | 535 | 240 | 13340 | 5800 |
| AG-R X1 | R-1W | IF520/85R42 | 175D | TL | 51 | 18 | 1942 | 535 | 360 | 15870 | 6900 |
