Description

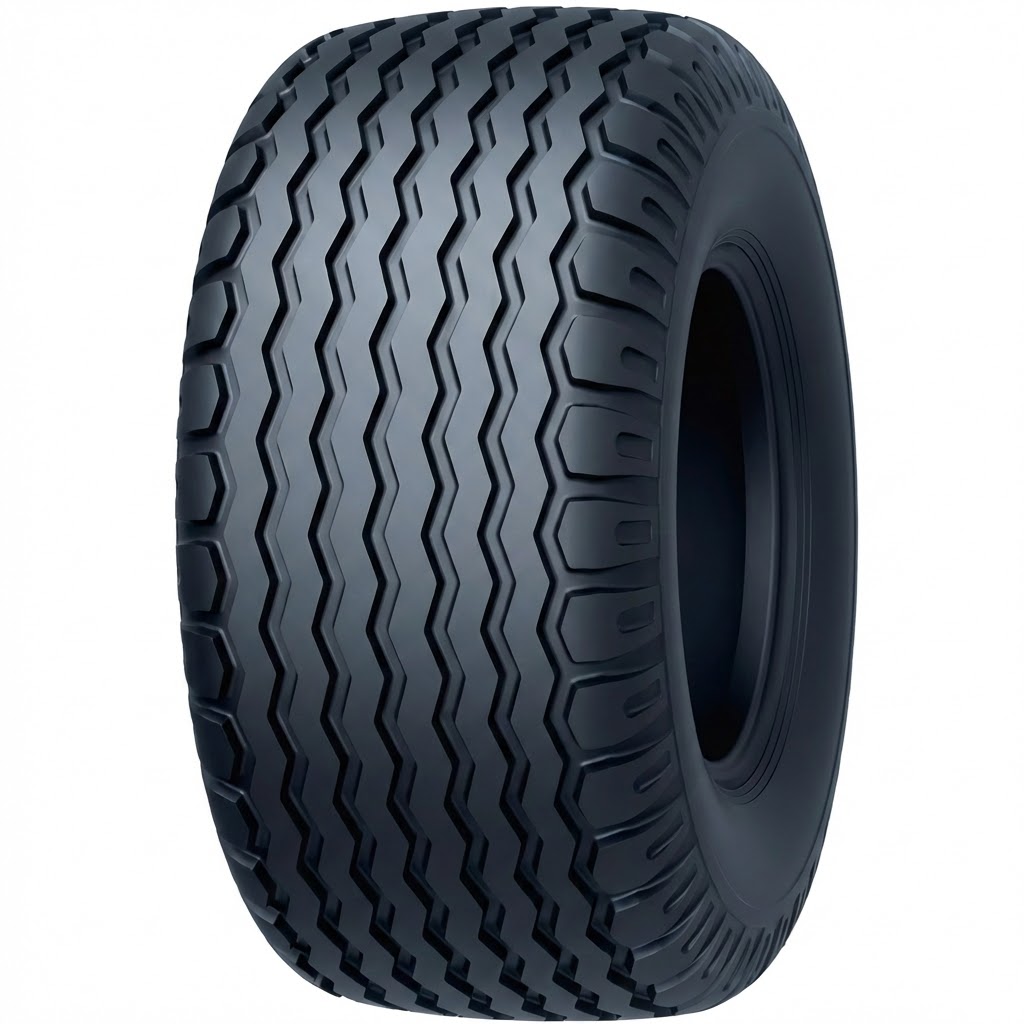

Model: F304

  • F304 is a tubeless high-flotation tire with good self-cleaning performance.

  • F304 provides high load capacity under low inflation pressure, effectively reducing damage to farmland and crops.

  • F304 features a strong carcass structure and special reinforcement materials for improved durability.

  • F304 is suitable for all kinds of agricultural implements, especially trailers.

F304 Tire Parameters (English, 1:1 Correspondence)

Speed reference: 40 km/h

Size Ply Rating TT/TL Tread Depth (mm) Rim Overall Diameter (mm) Section Width (mm) Inflation Pressure (kPa) Load (kg) @ 40 km/h
400/60-15.5 14 TL 12.0 AG13.00 878 410 360 2900
400/60-15.5 18 TL 12.0 AG13.00 878 410 450 3450
19.0/45-17 14 TL 12.0 16.00 866 491 390 2800
500/50-17 14 TL 12.0 16.00 945 500 380 3550
520/50-17 14 TL 12.0 16.00 945 513 360 4750
