In the agricultural machinery industry, securing the right replacement or OEM heavy-duty wheels involves much more than just matching the tyre size. Unlike standard passenger vehicles, tractors, harvesters, and heavy implements operate under extreme torsional stress, variable soil dynamics, and immense load capacities.
For global distributors, purchasing managers, and machinery OEMs, ordering a batch of agricultural steel rims with even a minor dimensional mismatch leads to catastrophic results: ruined tyre beads, severe axle vibration, premature wheel bearing failure, or components that simply won’t mount in the workshop.
To eliminate supply chain errors and guarantee seamless machinery integration, international buyers must precisely align three foundational engineering parameters. Here is a technical breakdown of what you need to verify before finalizing your bulk RFQ.
—
1. Pitch Circle Diameter (P.C.D.) & Bolt Pattern
The bolt pattern is the first line of defense for structural stability. It dictates exactly how the wheel disc mates with the vehicle’s hub assembly.
What it is: P.C.D. is the diameter of an imaginary circle passing through the center of all the wheel’s bolt holes (e.g., 8-stud on a 203.2mm circle or 10-stud on a 335mm circle).
Why it matters: Even a microscopic misalignment means the wheel studs cannot pass through cleanly or will be subjected to uneven clamping force. Under high-torque fieldwork, uneven bolt tension leads to sheared wheel studs and loose wheels.
Our Standard: We utilize advanced CNC machining centers to punch and chamfer bolt patterns based strictly on your exact machinery blueprints, ensuring perfect hub integration.
—
2. Wheel Offset (ET): Balancing the Centerline
The offset determines how deep the wheel sits inside the fender and directly dictates the tractor’s overall track width, stability, and steering geometry.
What it is: Offset is the distance from the wheel’s true geometric centerline to the mounting surface of the inner disc. It can be positive, negative, or zero.
Why it matters: An incorrect offset can cause heavy tractor tyres to rub against internal structural frames or steering linkages during tight farm turns. It can also displace the weight distribution unevenly across the axle bearings, drastically accelerating mechanical wear.
Our Standard: We engineering-tailor custom offsets to match specific regional implement designs and tractor configurations, distributing the operational weight perfectly.
—
3. Center Bore (Pilot Hole) Diameter
While bolts secure the wheel, the center bore carries the true load-bearing indexing on hub-centric wheel designs.
What it is: The central hole on the back of the wheel disc that fits perfectly over the tractor’s hub lip.
Why it matters: If the center bore is too small, the wheel cannot be mounted. If it is too large, the wheel relies entirely on the lug nuts for centering, which can introduce microscopic geometric runout (wobble) when driving under heavy payload.

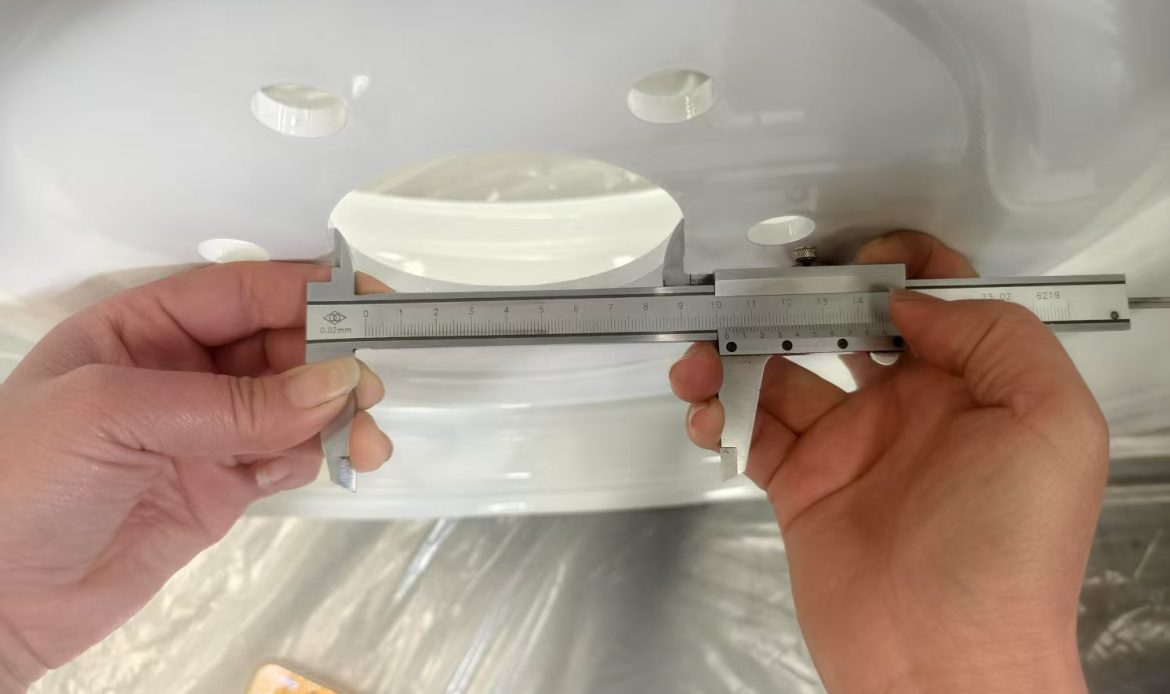

Our Standard: Prior to welding and delivery, our quality control inspectors use precision calipers and indicators to double-check that the center bore matches your exact tolerance window.
High-Volume Stability & Precision Engineering
At Shandong Chenhua International Trade Co., Ltd., we combine reliable mass-production capacity with flexible OEM expertise. We understand that agricultural productivity relies on engineering repeatability and stable supply chains.
Every batch of our agricultural steel rims undergoes:
* Strict dimensional validation and geometric runout alignment.
* Precision edge-deburring to protect your rubber tyres during mounting.
* Automotive-grade **IATF 16949** compliant testing to guarantee structural durability.
Don’t guess your dimensions—let our technical engineering team review your blueprints to ensure a perfect fit for your next bulk order.
Ready to Review Your Technical Blueprints?
* �� Get a Technical Blueprint Review:Our engineers specialize in custom P.C.D. patterns, unique center bores, and tailor-made offsets for global agricultural machinery.
* �� Send Your RFQ Today:Contact our international sales department directly at suky@chenhua-global.com
