Description

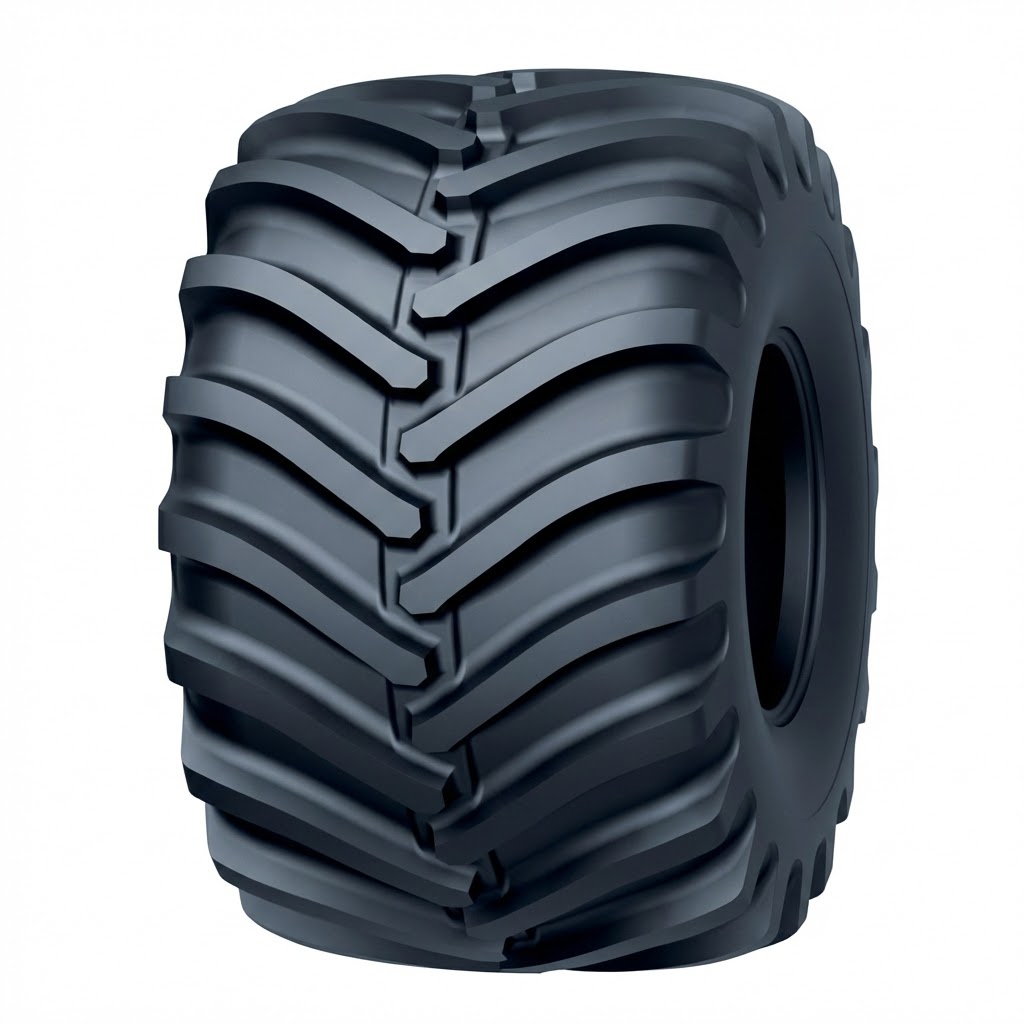

Model: TF
TRA Rating: HF-3
-
TF features a high-flotation tread design.
-
TF uses an optimized structure to provide higher load-carrying capacity under low inflation pressure. With a larger contact area, soil compaction is relatively lower.
-
TF is especially suitable for sensitive soil and crops.
-
TF adopts a unique wear-resistant tread compound and an anti-aging sidewall compound to ensure longer service life.
-
TF (HF-3) has a deeper tread pattern, making it suitable for harsher working conditions and providing stronger traction.
TF Tire Parameters (English, 1:1 Correspondence)
Speed reference: 50 km/h
| Size | Ply Rating | TT/TL | Tread Depth (mm) | Rim | Overall Diameter (mm) | Section Width (mm) | Inflation Pressure (kPa) | Load (kg) @ 50 km/h |
|---|---|---|---|---|---|---|---|---|
| 42×25.00-20 | 16 | TL | 38.0 | 20.5VF | 1112 | 622 | 410 | 2575 |
| 48×25.00-20 | 12 | TL | 45.0 | 20.5HF, 20.5VF | 1273 | 630 | 310 | 3250 |
| 48×25.00-20 | 16 | TL | 45.0 | 20.5HF, 20.5VF | 1273 | 630 | 410 | 3875 |
| 48×31.00-20 | 12 | TL | 45.0 | 26.00HF, 26.00VF | 1276 | 775 | 280 | 3150 |
| 48×31.00-20 | 20 | TL | 45.0 | 26.00HF, 26.00VF | 1276 | 775 | 450 | 4125 |
| 66×43.00-25 | 12 | TL | 58.0 | 36.0TH | 1720 | 1052 | 210 | 5000 |
| 66×43.00-25 | 16 | TL | 58.0 | 36.0TH | 1720 | 1052 | 280 | 6000 |
| 66×43.00-25 | 20 | TL | 58.0 | 36.0TH | 1720 | 1052 | 340 | 6700 |
| *66×43.00-25 | 22 | TL | 58.0 | 36.0TH | 1720 | 1052 | 380 | 7100 |
| *66×43.00-25 | 26 | TL | 58.0 | 36.0TH | 1720 | 1052 | 450 | 8000 |
| VA73x44.00-32 | 12 | TL | 76.5 | 36.0VA | 1912 | 1118 | 210 | 5800 |
| VA73x44.00-32 | 16 | TL | 76.5 | 36.0VA | 1912 | 1118 | 280 | 6900 |
