Description
Model: R104
TRA Rating: R-1
-

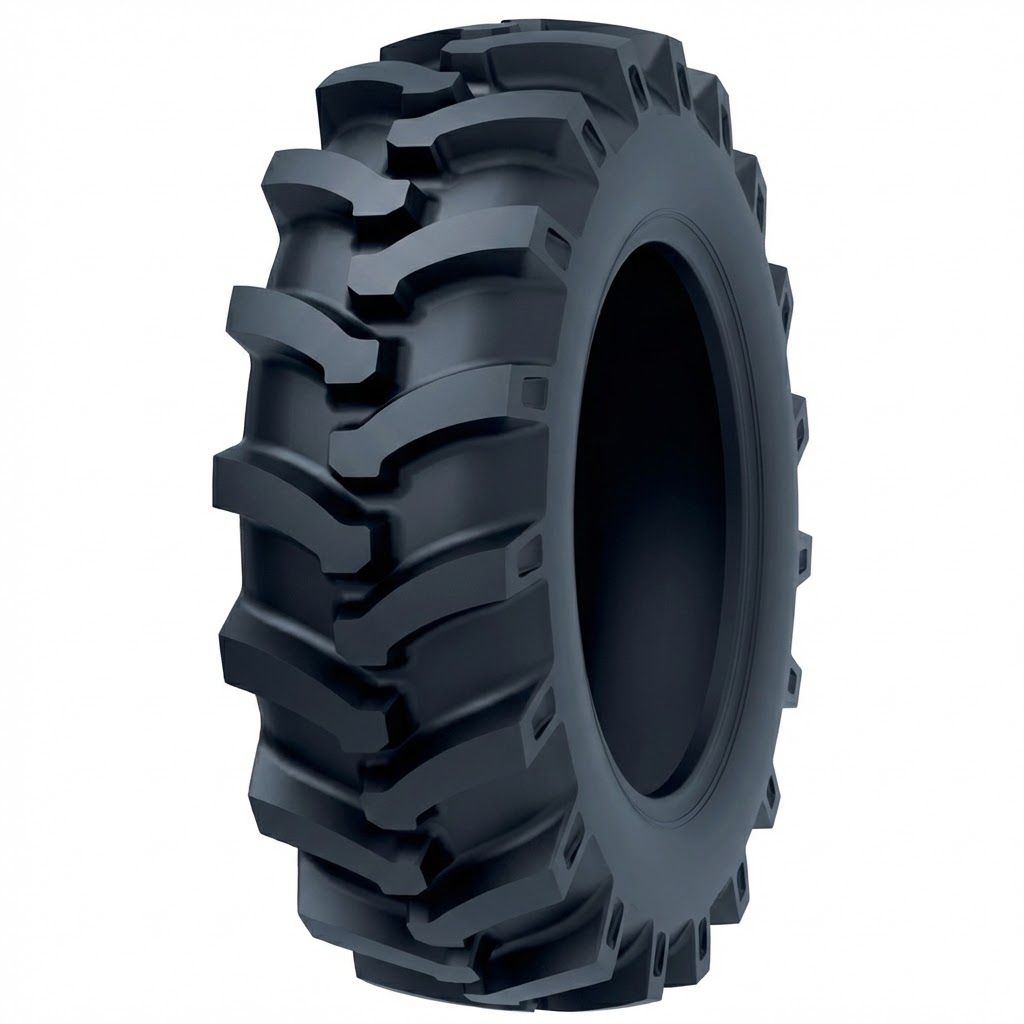

R104 features a chevron tread design with wider tread blocks and deeper tread depth, suitable for both dry fields and paddy fields.
-
R104 provides excellent smooth-running performance while also delivering outstanding traction.
-
R104 offers excellent wear resistance and is less prone to slipping.
R104 Tire Parameters (English, 1:1 Correspondence)
Speed reference: 30 km/h
| Size | Ply Rating | TT/TL | Tread Depth (mm) | Rim | Overall Diameter (mm) | Section Width (mm) | Inflation Pressure (kPa) | Load (kg) @ 30 km/h |
|---|---|---|---|---|---|---|---|---|
| 6.50-16 | 6 | TT | 30.0 | 5.00F | 765 | 180 | 250 | 565 |
| 7.50-16 | 6 | TT | 30.0 | 5.50F | 810 | 205 | 210 | 650 |
| 11.2-24 | 10 | TT | 40.0 | W10 | 1105 | 285 | 300 | 1380 |
| 11.2/12.4-28 | 10 | TT | 40.0 | W10 | 1205 | 285 | 300 | 1470 |
