Description

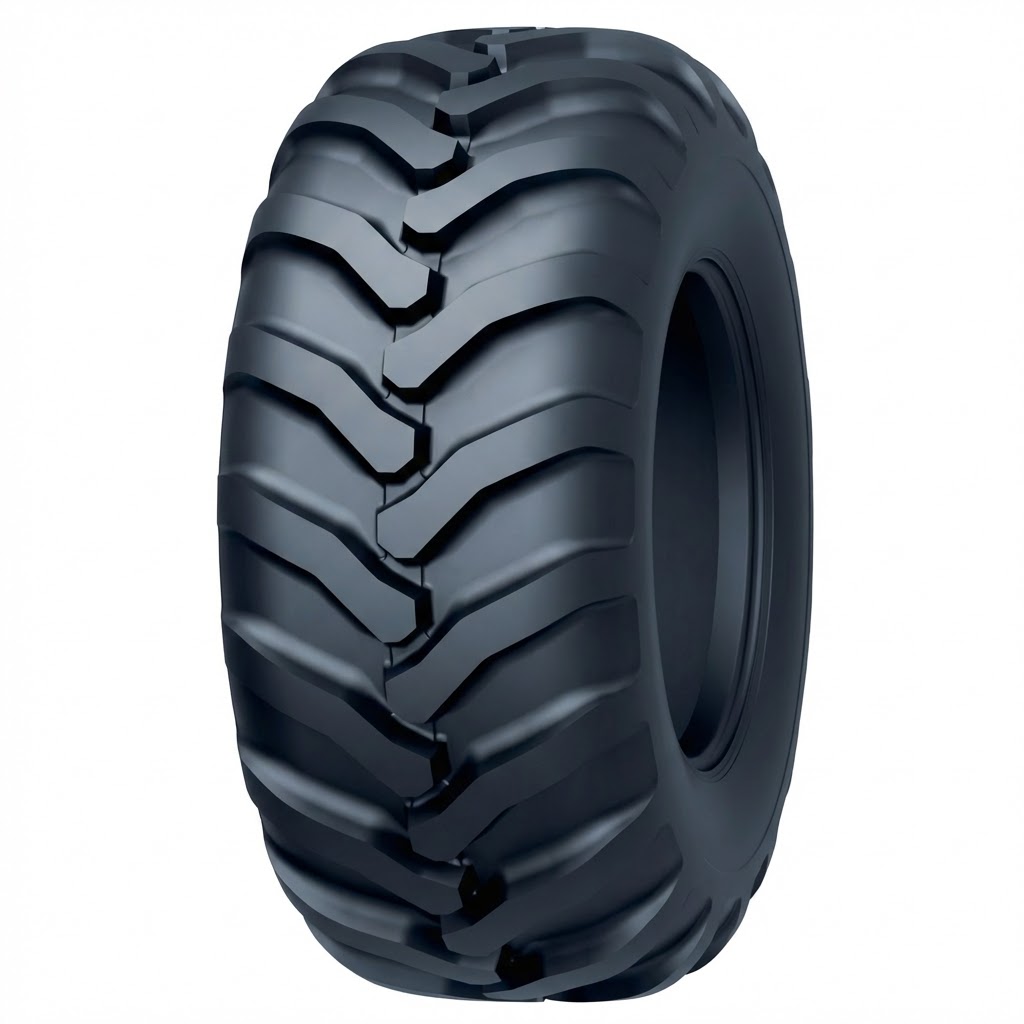

FT-A Tire Introduction (English)
Model: FT-A
TRA Rating: I-3
-
FT-A is a tubeless high-flotation tire with good self-cleaning performance.
-
FT-A provides high load-carrying capacity under low inflation pressure, effectively reducing damage to farmland and crops.
-
FT-A features a robust carcass structure and special reinforcement materials for improved durability.
-
FT-A is suitable for all kinds of agricultural implements, especially trailers.
FT-A Tire Parameters (English, 1:1 Correspondence)
Speed reference: 50 km/h
(Load/Speed Index shown separately for Free-Rolling Wheel and Drive Wheel)
| Size | Ply Rating | Load/Speed Index (Free-Rolling) | Load/Speed Index (Drive) | TT/TL | Tread Depth (mm) | Rim | Overall Diameter (mm) | Section Width (mm) | Inflation Pressure (kPa) | Load (kg) Free-Rolling @ 50 km/h | Load (kg) Drive @ 50 km/h |
|---|---|---|---|---|---|---|---|---|---|---|---|
| *500/45-20 | 18 | – | 160A8 | TL | 25.0 | 16.00 | 965 | 485 | 600 | – | 4050 |
| 500/60-22.5 | 12 | 157A8 | 145A8 | TL | 35.0 | 16.00DC | 1170 | 500 | 240 | 3710 | 2610 |
| 500/60-22.5 | 16 | 163A8 | 151A8 | TL | 35.0 | 16.00DC | 1170 | 500 | 320 | 4390 | 3110 |
| *600/40-22.5 | 16 | – | 148A8 | TL | 35.0 | 20.00 | 1092 | 592 | 280 | – | 2840 |
| *600/40-22.5 | 18 | – | 169A8 | TL | 35.0 | 20.00 | 1092 | 592 | 600 | – | 5230 |
