Description

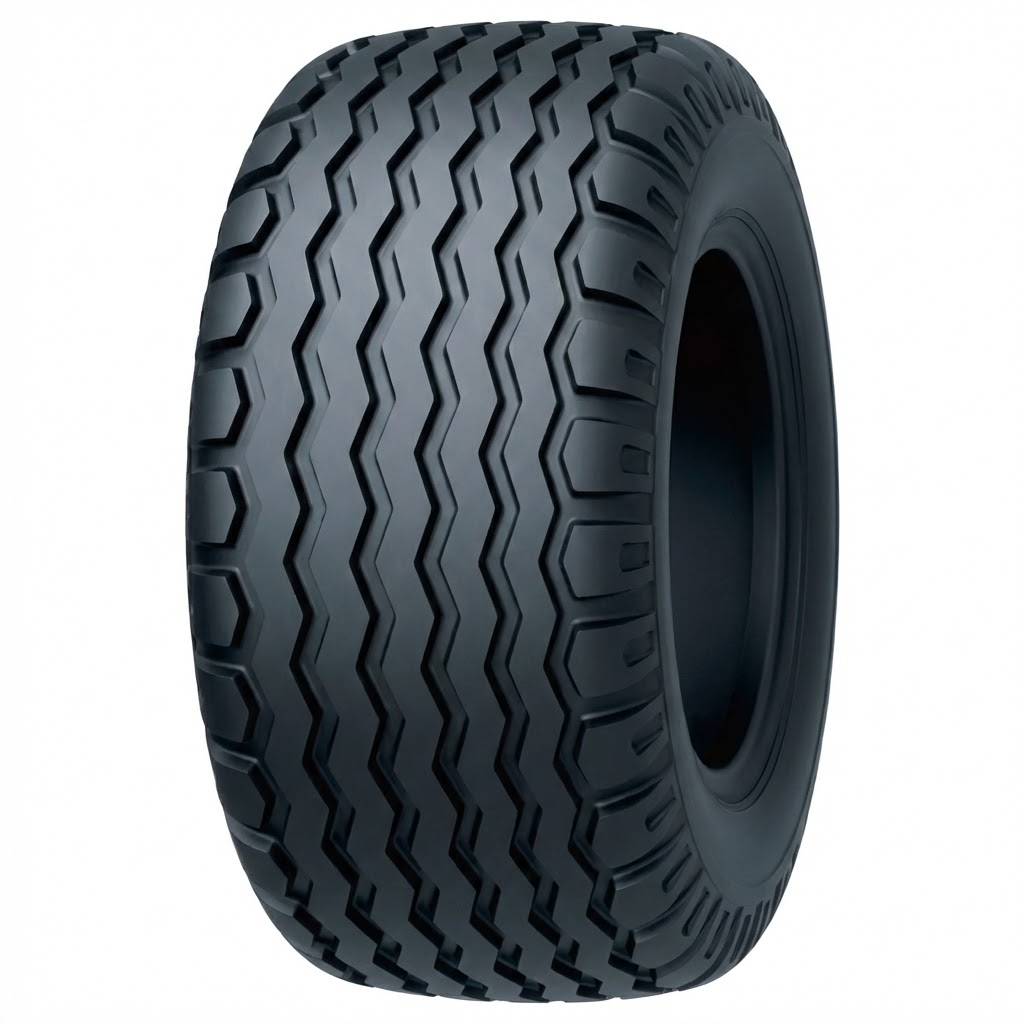

Model: F303
-
F303 is a tubeless high-flotation tire with good self-cleaning performance.
-
F303 provides high load capacity under low inflation pressure, effectively reducing damage to farmland and crops.
-
F303 features a strong carcass structure and special reinforcement materials for improved durability.
-
F303 is suitable for all kinds of agricultural implements, especially trailers.
Model: F303-1
-
F303-1 is designed for agricultural implements and trailer applications.
-
F303-1 provides stable load support and good durability.
F303 Tire Parameters (English, 1:1 Correspondence)
Speed reference: 40 km/h
| Size | Ply Rating | TT/TL | Tread Depth (mm) | Rim | Overall Diameter (mm) | Section Width (mm) | Inflation Pressure (kPa) | Load (kg) @ 40 km/h |
|---|---|---|---|---|---|---|---|---|
| 15.0/55-17 | 10 | TL | 12.0 | 13.00 | 850 | 391 | 360 | 2120 |
| 15.0/55-17 | 14 | TL | 12.0 | 13.00 | 850 | 391 | 490 | 2575 |
| 15.0/55-17 | 18 | TL | 12.0 | 13.00 | 850 | 391 | 650 | 3250 |
F303-1 Tire Parameters (English, 1:1 Correspondence)
Speed reference: 40 km/h
| Size | Ply Rating | TT/TL | Tread Depth (mm) | Rim | Overall Diameter (mm) | Section Width (mm) | Inflation Pressure (kPa) | Load (kg) Drive @ 40 km/h | Load (kg) Free-Rolling @ 40 km/h |
|---|---|---|---|---|---|---|---|---|---|
| 15.0/55-17 | 14 | TL | 9 | 13 | 850 | 391 | 360 | 2575 | 1800 |
