Description

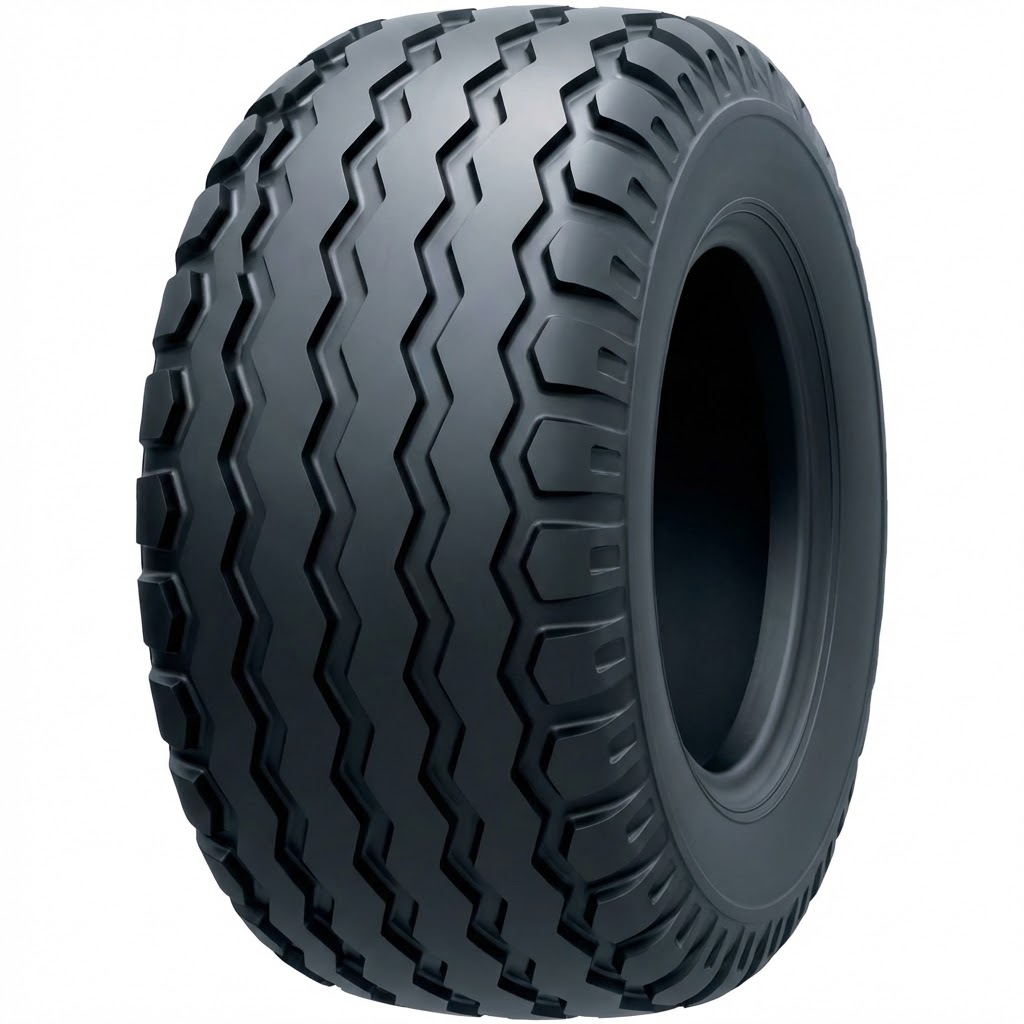

Model: F302

TRA Rating: F-2

• F302 is a tubeless high-flotation tire with good self-cleaning performance.

• F302 provides high load capacity under low inflation pressure, effectively reducing damage to farmland and crops.

• F302 features a strong carcass structure and special reinforcement materials for improved durability.

• F302 is suitable for all kinds of agricultural implements, especially trailers.

---

Model: F302-1

TRA Rating: F-2

• F302-1 is designed for improved flotation and stability.

• F302-1 provides balanced load distribution and enhanced durability.

• F302-1 is suitable for agricultural transport and field operations.

---

F302 Tire Parameters (English, 1:1 Correspondence)

Speed reference: 40 km/h

Size	Ply Rating	TT/TL	Tread Depth (mm)	Rim	Overall Diameter (mm)	Section Width (mm)	Inflation Pressure (kPa)	Load (kg) @ 40 km/h
10.0/75-15.3	10	TL	10.0	9.00	760	274	520	1550
10.0/75-15.3	14	TL	10.0	9.00	760	274	710	1900
10.0/75-15.3	18	TL	10.0	9.00	760	274	710	2360
10.0/75-15.3	22	TL	10.0	9.00	760	274	840	2800
10.5/80-18	14	TL	11.0	W9	885	275	700	2360
11.5/80-15.3	10	TL	10.0	9.00	844	297	460	1950
11.5/80-15.3	14	TL	10.0	9.00	844	297	650	2430
11.5/80-15.3	18	TL	10.0	9.00	844	297	600	2800
12.5/80-15.3	14	TL	12.0	9.00	885	312	430	2650
12.5/80-15.3	18	TL	12.0	9.00	885	312	550	3000
12.5/80-18	12	TL	11.0	W9	965	308	500	2650
13.0/65-18	16	TL	11.0	11.00	890	336	675	2800
13.0/75-16	12	TL	12.0	11.00	890	340	380	2360

F302-1 Tire Parameters (English, 1:1 Correspondence)

Speed reference: 40 km/h

Size	Ply Rating	TT/TL	Tread Depth (mm)	Rim	Overall Diameter (mm)	Section Width (mm)	Inflation Pressure (kPa)	Load (kg) Drive @ 40 km/h	Load (kg) Free-Rolling @ 40 km/h
10.0/75-15.3	14	TL	8	9	760	274	550	1900	1320
10.0/80-12	10	TL	8	9	710	264	390	1450	1030
11.5/80-15.3	16	TL	8	9	844	300	540	2575	1800
12.5/80-15.3	14	TL	9	9	889	312	430	2650	1850
