Description

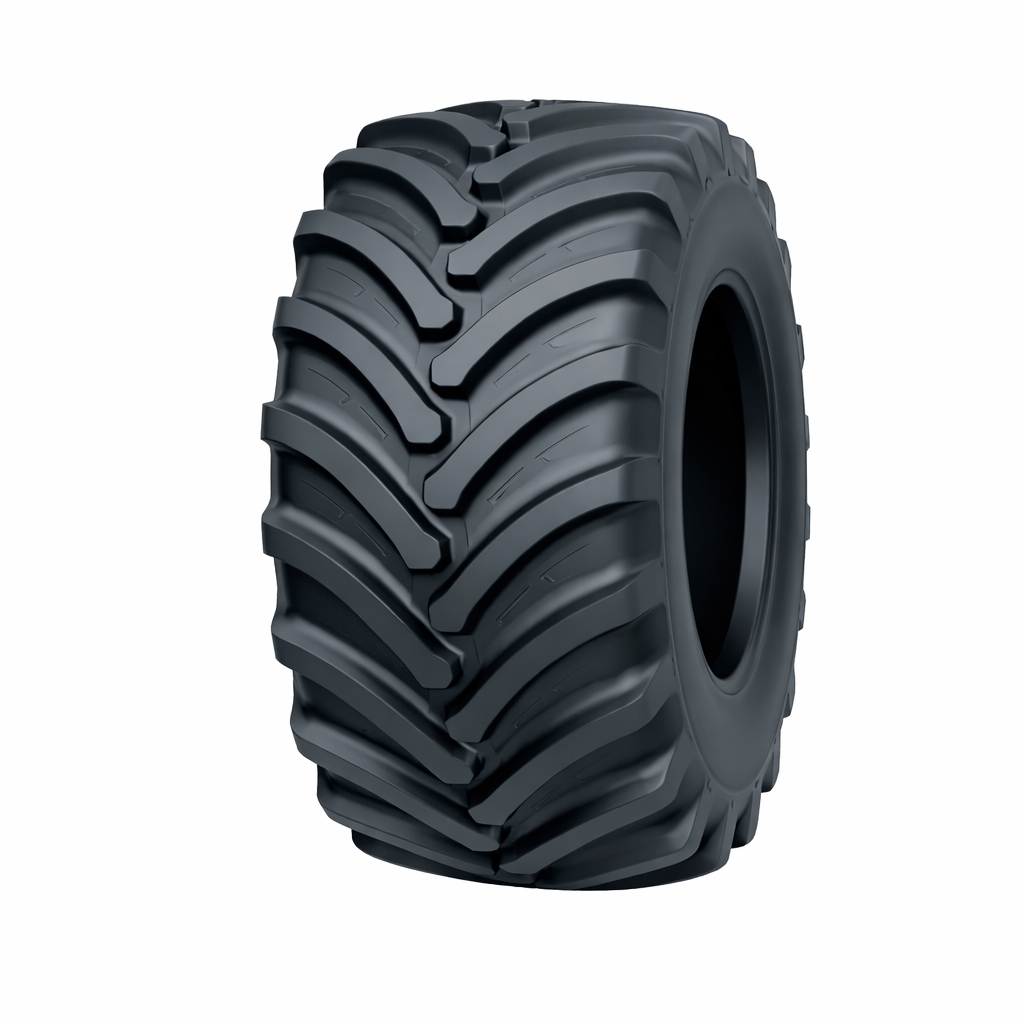

AG RS is a high-performance R-1 agricultural tire engineered for durability, traction, and field efficiency.
Designed with advanced tread geometry and reinforced structure, it delivers excellent grip, stability, and self-cleaning performance across various soil conditions.
Key Features
-
Ultra-wear-resistant tread compound extends service life
-
Optimized lug geometry ensures superior traction and mud evacuation
-
R-1 deep lug pattern suitable for dry soil and general farmland operations
-
Advanced IF technology improves load capacity and operational efficiency
-
Ideal choice for modern high-efficiency agricultural machinery
| Size | Load Index | TT/TL | Tread Depth (mm) | Rim | Overall Dia (mm) | Section Width (mm) | Pressure (kPa) | Static Load (kg) | Load @ 50 km/h (kg) | Load @ 65 km/h (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 380/85R26 (14.9R26) | 127A8/127B | TL | 38.0 | 12.00 | 1295 | 378 | 160 | 4025 | 1750 | – |
| 620/75R26 (23.1R26) | 168A8/168B | TL | 45.0 | 20.00 | 1605 | 641 | 320 | 12190 | 5300 | – |
| 750/65R26 | 158A8/158B / 168A8/168B | TL | 46.0 | 25.00 | 1600 | 761 | 160 / 240 / 320 | 9775 / 12190 / 14490 | 4250 / 5300 / 6300 | – |
| 420/85R28 (16.9R28) | 139A8/139B | TL | 39.0 | 15.00 | 1403 | 448 | 160 | 5590 | 2430 | – |
| 380/85R30 (14.9R30) | 138A8/135B | TL | 38.0 | 12.00 | 1407 | 380 | 160 | 5010 | 2180 | – |
| 650/75R32 (24.5R32) | 172A8/172B | TL | 48.0 | 20.00 | 1796 | 658 | 320 | 14490 | 6300 | – |
| 650/75R32 (24.5R32) | 180A8/180B | TL | 48.0 | 20.00 | 1796 | 658 | 500 | 18400 | 8000 | – |
| IF1050/50R32 | 185B/185B | TL | 40.0 | 36.00 | 1863 | 1038 | 240 | 21275 | 9250 | 9250 |
| 420/80R46 | 151A8/151B / 159D | TL | 40.0 | 13.00 | 1848 | 398 | 240 / 360 | 7935 / 10080 | 3450 / 4590 | 4375 |
| 320/90R50 (12.4R50) | 150A8/150B | TL | 36.0 | 10.00 | 1828 | 305 | 360 | 7705 | 3350 | – |
| 12.4R54 | 133A8/133B | TL | 36.0 | 11.00 | 1921 | 315 | 210 | 4740 | 2060 | – |
| 320/90R54 (12.4R54) | 156A8/156B | TL | 36.0 | 10.00 | 1926 | 318 | 440 | 9200 | 4000 | – |
