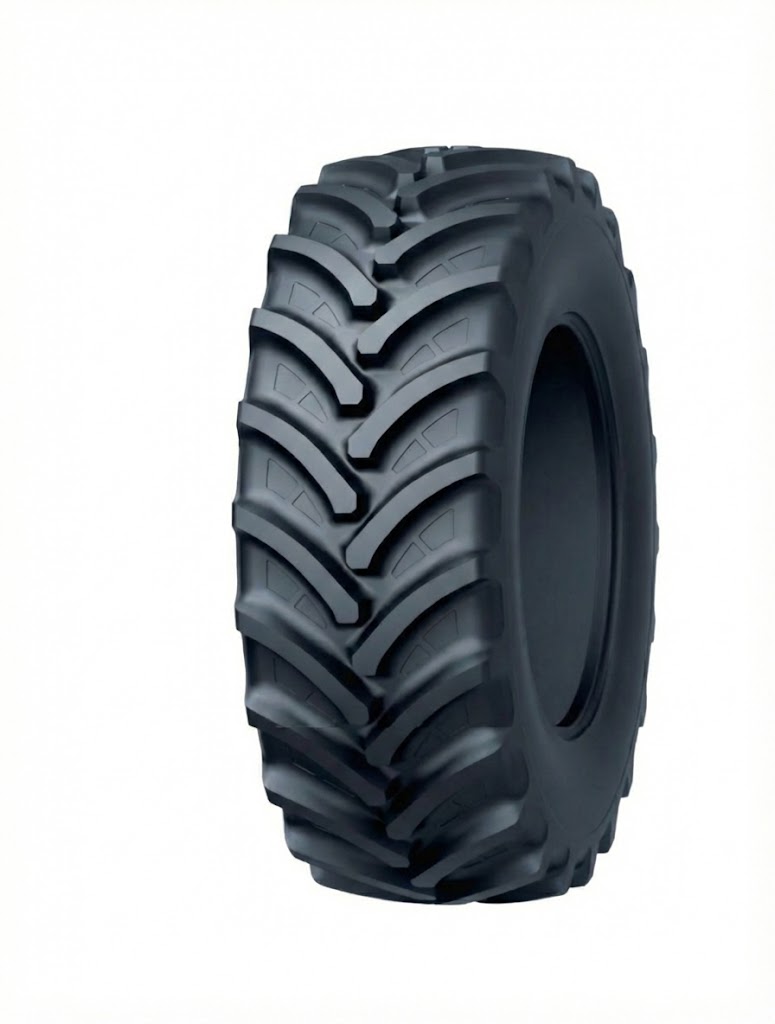

70/75 Series AG-RADIAL (TRA: R-1W)

70/75 Series AG-RADIAL (TRA: R-1W)

wws suky / Pre-sale Questions Need Help? Contact Us via WhatsApp
Categories: ,

Description

Product Highlights



  • High-Speed Performance: Travel speeds up to 50 km/h with excellent comfort and stability.

  • Extended Service Life: Larger contact area ensures a service life of up to 4,000 hours.

  • Superior Wear Resistance: Large tread lugs at the center provide outstanding durability.

  • Excellent Traction: Offers exceptional passability and traction in various field conditions.

  • Self-Cleaning: Designed with efficient self-cleaning properties.

  • Soil Protection: Rounded shoulders minimize soil compaction and protect the soil structure.





Size (Spec) Load/Speed Index Type Tread Depth (mm) Rim Outer Dia. (mm) Section Width (mm) Pressure (KPa) Static Load (Kg) Load @ 40 km/h (Kg) Load @ 50 km/h (Kg)
Load @ 65 km/h (Kg)
360/70R24 122A8/122B TL 42 11 1135 354 160 3450 1500 1500 –
380/70R24 125A8/125B TL 42 12 1198 384 160 3795 1650 1650 –
420/70R24 130A8/130B TL 45 13 1231 426 160 4370 1900 1900 –
480/70R24 138A8/138B TL 47 15 1314 488 160 5420 2350 2350 –
480/70R24 162A8/162B TL 47 15 1314 488 400 10930 4750 4750 –
*520/70R26 166A8/166B TL 52 DW20B 1501 620 320 12190 5300 5300 –
360/70R28 125A8/125B TL 42 11 1258 356 160 3795 1650 1650 –
380/70R28 127A8/127B TL 42 12 1304 382 160 4025 1750 1750 –
420/70R28 133A8/133B TL 45 13 1350 414 160 4740 2060 2060 –
480/70R28 140A8/140B TL 47 15 1431 477 160 5750 2500 2500 –
*600/70R28 157D TL 51 DW18L 1551 591 240 9490 4520 4330 4125
IF 600/70R28 168D TL 51 DW20B 1536 612 280 12880 5600 5600 5600
420/70R30 134A8/134B TL 46 13 1384 422 160 4875 2120 2120 –
480/70R30 141A8/141B TL 47 15 1463 480 160 5920 2575 2575 –
520/70R30 145A8/145B TL 48 16 1528 522 160 6670 2900 2900 –
520/70R30 151A8/151B TL 48 16 1528 522 240 7935 3450 3450 –
600/70R30 152A8/152B TL 51 20 1610 586 160 8165 3550 3550 –
600/70R30 155D/158A8 TL 51 20 1610 586 160 8165 3875 3730 3550
VF 600/70R30 170A8/170B TL 51 DW20B, DW21B 1610 586 240 13800 6000 6000 –
710/75R32 177A8/177B TL 56 DW23B 1872 736 320 16790 7300 7300 –
480/70R34 143A8/143B TL 47 15 1571 487 160 6270 2725 2725 –
480/70R34 149D TL 47 15 1571 487 240 7475 3560 3410 3250
520/70R34 148A8/148B TL 48 16 1639 530 160 7245 3150 3150 –
600/70R34 160D/163A8 TL 51 20 1705 586 240 10350 4875 4875 4500
*620/75R34 170D TL 53 DW20B 1784 611 320 13800 6900 6300 6000
IF 620/75R34 177D TL 53 DW20B 1784 606 320 – – 7300 –
IF 710/75R34 CFO 178D/177B TL 48 DW25 1912 726 240 21275 7500 7500 7500
480/70R38 145D TL 47 15 1683 483 160 6670 3175 3045 2900
520/70R38 150A8/150B TL 48 16 1743 529 160 7705 3350 3350 –
580/70R38 155A8/155B TL 51 18 1822 580 160 8910 3875 3875 –
580/70R38 155D/158A8 TL 51 18 1822 580 160 8910 4250 4070 3875
580/70R38 170A8/170B TL 51 18 1822 580 280 13800 6000 6000 –
*580/70R38 180A8 TL 51 18 1822 580 460 18400 8000 8000 –
710/70R38 166D/169A8 TL 58 23 1959 741 160 12190 5800 5555 5300
710/70R38 172A8/172B TL 58 23 1959 741 320 16790 7300 7300 –
710/70R38 175D TL 58 23 1959 741 340 15870 8210 7875 7500
*IF 800/70R38 184D/184D TL 60 27 2085 805 240 20700 9000 9000 9000
580/70R42 158A8/158B TL 51 18 1870 575 160 9775 4250 4250 –
580/70R42 176A8/176B TL 51 18 1870 575 320 16330 7100 7100 –
620/70R42 160A8/160B TL 52 20 1917 626 160 10350 4500 4500 –
620/70R42 166A8/166B TL 52 20 1917 626 240 12190 5300 5300 –
710/70R42 173A8/173B TL 58 23 2079 743 240 14950 6500 6500 –
710/70R42 173D/176A8 TL 58 23 2079 743 240 14950 7100 6825 6500
710/70R42 176A8/176B TL 58 23 2079 743 280 16330 7100 7100 –
710/70R42 179D TL 58 23 2079 743 320 18825 8485 8140 7750
710/75R42 175D/178A8 TL 62 23 2127 728 240 15870 7500 7245 6900
710/75R42 181D TL 62 23 2127 728 320 18975 9030 8650 8250
