Description
Model: I102
TRA Rating: F-1
-

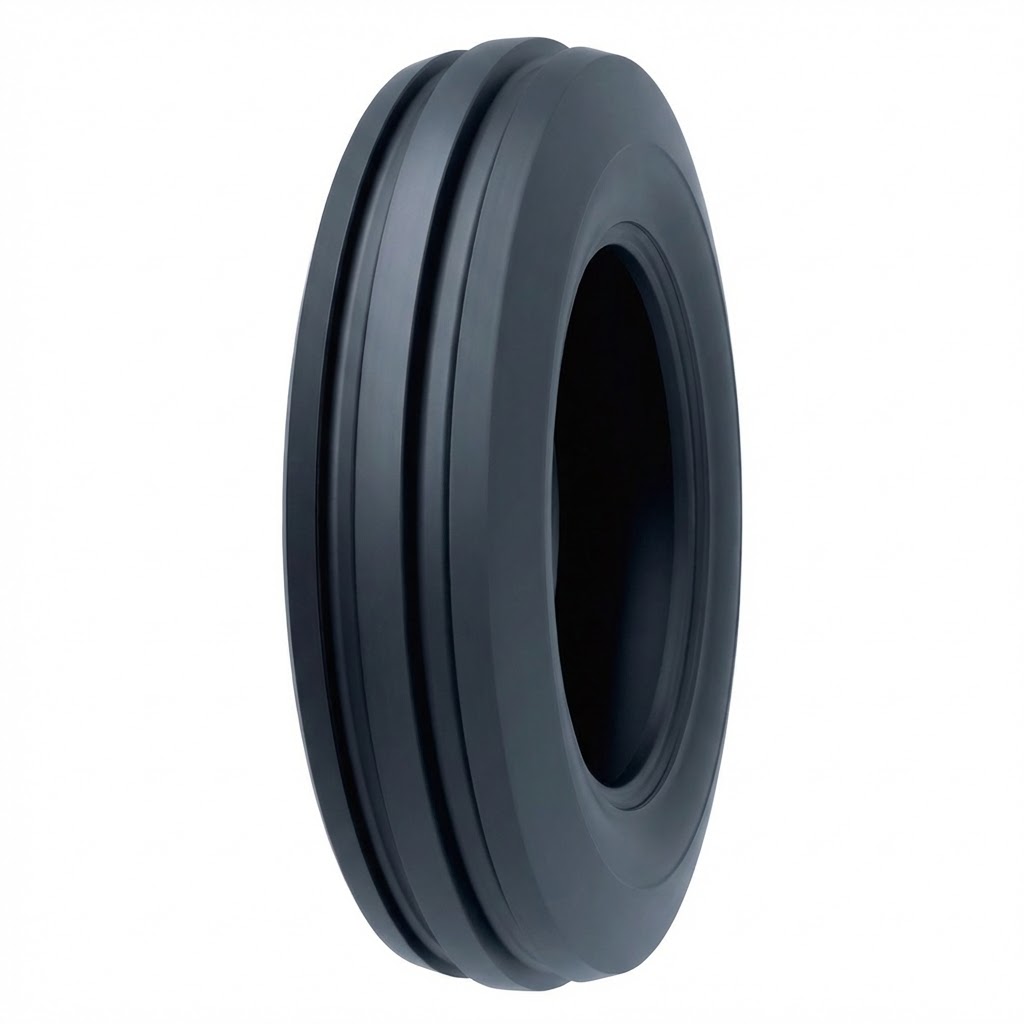

I102 adopts a classic three-rib tread design, giving tractors excellent steering performance when operating in soft cultivated fields.
-
I102 uses a widened center rib design to improve tire wear resistance.
-
I102 features a large-radius groove-bottom transition, which effectively helps prevent groove-bottom cracking.
I102 Tire Parameters (English, 1:1 Correspondence)
Speed reference: 30 km/h
| Size | Ply Rating | TT/TL | Tread Depth (mm) | Rim | Overall Diameter (mm) | Section Width (mm) | Inflation Pressure (kPa) | Load (kg) @ 30 km/h |
|---|---|---|---|---|---|---|---|---|
| 4.00-14 | 4 | TT | 10.0 | 3.00D | 590 | 110 | 340 | 270 |
| 4.00-16 | 4 | TT | 12.0 | 3.00D | 640 | 110 | 340 | 300 |
| 5.00-15 | 6 | TT | 10.0 | 4J | 665 | 140 | 420 | 465 |
| 5.00-16 | 6 | TT | 14.5 | 4.00E | 710 | 150 | 370 | 525 |
| 6.00-16 | 6 | TT | 14.0 | 4.00E | 740 | 160 | 340 | 560 |
| 6.00-16 | 8 | TT | 14.0 | 4.00E | 740 | 160 | 450 | 675 |
| 6.50-16 | 6 | TT | 15.0 | 4.50E | 760 | 175 | 310 | 615 |
| 7.50-16 | 6 | TT | 20.0 | 5.50F | 810 | 205 | 280 | 745 |
